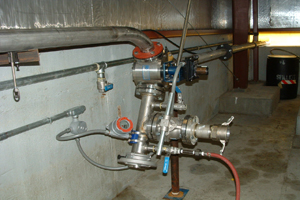

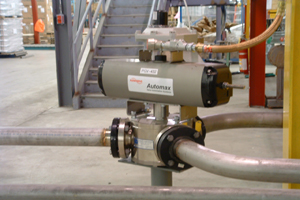

Piggable 3-Way Diverter Valve

When the application requirement is simply to divide the transfer from a single source to two destinations, a Piggable 3‑Way Diverter Valve can be used.  The diverter valve can be set so that incoming product can be transferred to either of 2 possible downstream destinations.  Piggable 3‑Way Diverter Valves have no dead legs and can be linked together in a single common transfer line for making targeted drops to numerous destinations along the line without concern for residual product contamination.  In this configuration, each valve in the line is either set to drop to the targeted destination or pass the product further along the transfer line to the next Piggable 3-Way Diverter Valve in the sequence.
