Multiple Sources to Multiple Destinations

select a component below for details
Pigging System Diagram

Horseshoe Manifold previous image 2 images next image

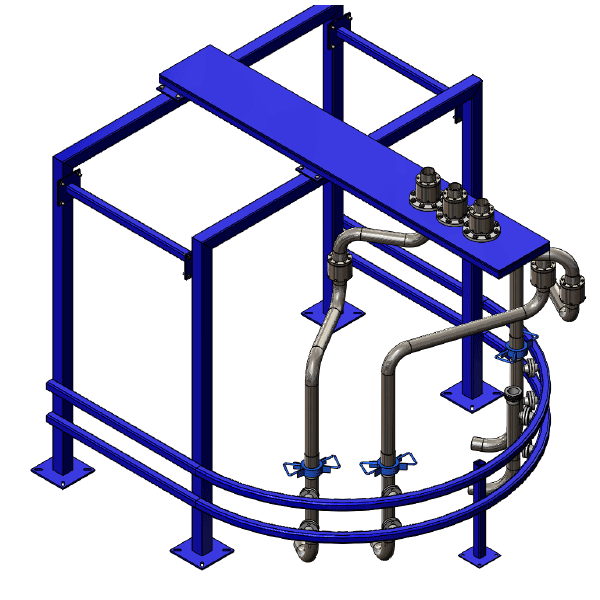

Horseshoe Manifold
The Horseshow Manual Manifold is one example of manny different low-cost manifold designs available from Pigging Solutions. The Horseshoe Manifold design provides for a large number of inlet lines staggered around the horseshoe connection rail. The 4x3 horseshoe design shown above, illustrates 4 product source lines that can be connected to any of the 3 destination lines. Connections are made using articulating swivel jointed arms that are both safe and easy-to-use for operators. When the transfer is complete, the line is pigged from source to destination allowing for the recovery of product and reduced risk of product cross-contamination and line flushing.
